The Monel K500 has excellent high-temperature strength and low-temperature toughness, and can withstand significant pressure and impact in both high and low temperature environments. In addition, the conductivity and thermal conductivity of the alloy are also good, which can meet the needs of engineering applications.
The processing difficulty of Monel K500 is relatively high, requiring the use of special processing equipment and tools. During the processing, this alloy is prone to cracking and deformation, which requires strict control and adjustment. In addition, due to the poor thermal conductivity of the alloy, temperature control is necessary during processing.
-
Chemical Properties of Monel K500
| Ni | Cu | Al | Ti | C | Mn | Fe | S | Si |
| 63 Max | 27-33 | 2.3-3.15 | 0.35-0.85 | 0.25 max | 1.5 max | 2.0 max | 0.01 max | 0.50 max |

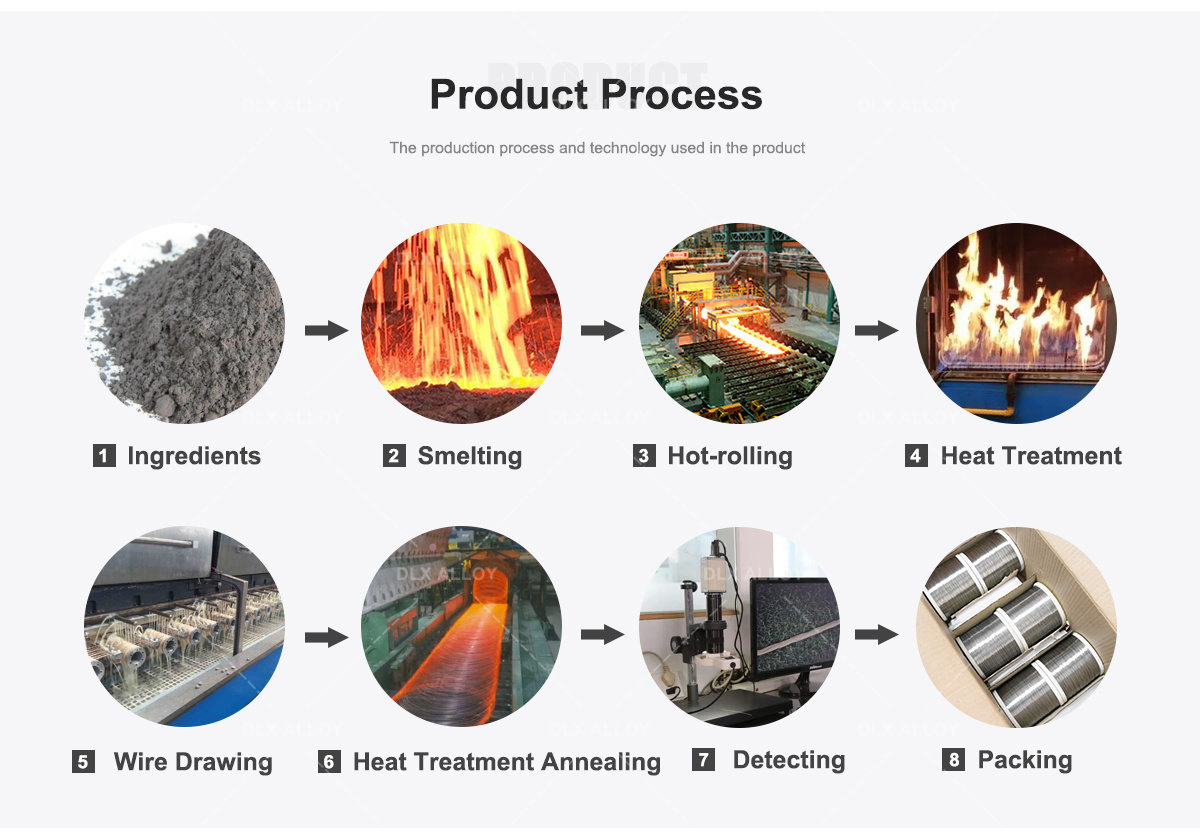

1. Raw Material Selection: The production of Monel K500 wire begins with the selection of high-quality raw materials, typically alloys containing nickel, copper, aluminum, and titanium.
2. Alloy Melting: The chosen raw materials undergo high-temperature melting to form the Monel K500 alloy. Precise alloy composition is crucial to ensure the final product's performance.
3. Billet Preparation: After alloy melting, billets are prepared through casting or other methods, setting the stage for the subsequent heat treatment and deformation processes.
4. Billet Heat Treatment: Billets undergo precise heat treatment to adjust their crystalline structure, enhancing the material's mechanical properties and corrosion resistance.
5. Drawing Process: Following billet heat treatment, the material is drawn into fine wires of the desired diameter, a crucial step to ensure the end product's strength and dimensional accuracy.
6. Surface Treatment: The fine wires undergo surface treatments, including polishing and acid washing, to ensure surface smoothness and corrosion resistance.
7. Testing: Rigorous quality testing of the finished product includes chemical composition analysis, mechanical property testing, etc., ensuring the product meets specification standards.
8. Packaging: Qualified Monel K500 wires are packaged according to customer requirements to prevent damage during transportation and storage.
